consult_diagnostics

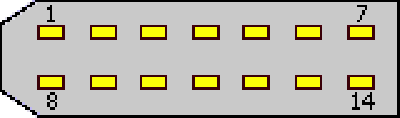

The 14 pin Nissan Consult diagnostics port was the predecessor to the now well known OBD port.
Taken from https://pinoutguide.com
| Pin Number | Pin Name | Description (may be empty) |
| 1 | RX (TX?) | Data in |
| 2 | TX (RX?) | Data out |
| 4 | ABS | ABS diagnostic |
| 6 | CHK | Check to ECCS |
| 7 | +12v | Power |
| 8 | GND | Ground |
| 9 | CLK | Synchronization signal |
