ABS hydraulic pump unit is located between the battery & firewall.

Wheel sensors are located in the hub of each wheel with an encoder ring on front CV's.

1. Drive the vehicle at 30 kph or more for at least 1 minute.
2. Stop vehicle and turn ignition OFF.

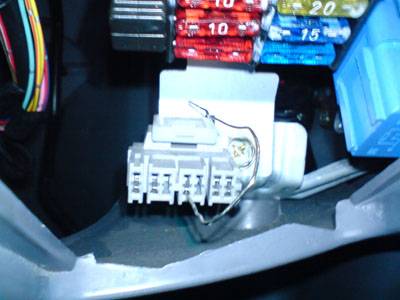

3. Connect the terminals with your own wire link, as shown on the diagram. missing image of connector, could be consult 14 pin ?
4. Turn ignition ON.
5. Read codes as follows

• Each code is made up of two series of flashes.
• The long flashes indicate the 'tens' digits.
• he short flashes indicate the 'ones' digits.
• A long pause separates each code sequence.
• Once every code has been displayed the code sequence repeats.
• If no faults, only code 12 will be displayed.
• Code Format Diagram shows code No. 12.

Missing Image of ABS Code Format

When a problem occurs in the ABS, the warning lamp on the instrument panel comes on. To start the selfdiagnostic results mode, ground the self-diagnostic (check) terminal located on Data Link Connector. The location of the malfunction is indicated by the warning lamp flashing.

1. Drive vehicle over 30 km/h (19 MPH) for at least one minute.
2. Turn ignition switch OFF.
3. Ground terminal 9 of Data Link Connector with a suitable harness.
4. Turn ignition switch ON while grounding terminal 9. Do not depress brake pedal.
5. After 3.0 seconds, the warning lamp starts flashing to indicate the malfunction code No. (See NOTE.)
6. Verify the location of the malfunction with the malfunction code chart. Then make the necessary repairs following the diagnostic procedures.
7. After the malfunctions are repaired, erase the malfunction codes stored in the control unit. See Below
8. Rerun the self-diagnostic results mode to verify that the malfunction codes have been erased.
9. Disconnect the check terminal from the ground. The self-diagnostic results mode is now complete.
10. Check warning lamp for deactivation after driving vehicle over 30 km/h (19 MPH) for at least one minute.
11. After making certain that warning lamp does not come on, test the ABS in a safe area to verify that it functions properly.

NOTE: The indication terminates after 5 minutes. However, when the ignition switch is turned from OFF to ON, the indication starts flashing again.

1. Determine the code No. by counting the number of times the warning lamp flashes on and off.
2. When several malfunctions occur at one time, up to three code numbers can be stored; the latest malfunction will be indicated first.
3. The indication begins with the start code 12. After that a maximum of three code numbers appear in the order of the latest one first. The indication then returns to the start code 12 to repeat (the indication will stay on for five minutes at most).

1. Disconnect the check terminal from ground (ABS warning lamp will stay lit).
2. Within 12.5 seconds, ground the check terminal three times. Each terminal ground must last more than 1 second. The ABS warning lamp goes out after the erase operation has been completed.
3. Perform self-diagnosis again. Only the start code should appear, no malfunction codes.

• Code No. Malfunctioning Part Reference Page
• 12 Self-diagnosis could not detect any malfunctions.
• 45 Actuator front left outlet solenoid valve
• 46 Actuator front left inlet solenoid valve
• 41 Actuator front right outlet solenoid valve
• 42 Actuator front right inlet solenoid valve
• 51 Actuator rear right outlet solenoid valve
• 52 Actuator rear right inlet solenoid valve
• 55 Actuator rear left outlet solenoid valve
• 56 Actuator rear left inlet solenoid valve
• 25 *1 Front left sensor (open-circuit)
• 26 *1 Front left sensor (short-circuit)
• 21 *1 Front right sensor (open-circuit)
• 22 *1 Front right sensor (short-circuit)
• 31 *1 Rear right sensor (open-circuit)
• 32 *1 Rear right sensor (short-circuit)
• 35 *1 Rear left sensor (open-circuit)
• 36 *1 Rear left sensor (short-circuit)
• 18 *1 Sensor rotor
• 61 *3 Actuator motor or motor relay
• 63 Solenoid valve relay
• 57 *2 Power supply (Low voltage)
• 71 Control unit ### 1990-1998 Nissan ABS fault codes

Bridging the ABS diagnostic terminal with a paperclip

1. Drive the vehicle at 30 kph or more for at least 1 minute.
2. Stop vehicle and turn ignition OFF.

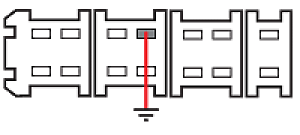

3. Earth the terminal using a wire link, as shown on the diagram.
4. Turn ignition ON.
5. Read codes as follows:

There are two types of codes that could be observed. The most common is the Long flashes for 'tens'.

• Each code is made up of two series of flashes.
• The long flashes indicate the 'tens' digits.
• The short flashes indicate the 'ones' digits.
• A long pause separates each code sequence.
• Once every code has been displayed the code sequence repeats.
• If no faults, only code 12 will be displayed.
• Format Diagram shows code No. 12.

Or…

• Each code is made up of two series of flashes.
• The first series indicates the 'tens' digit.
• The second series indicates the 'ones' digit.
• A long pause separates each code.
• A shorter pause separates the 'tens' and 'ones'.
• Format Diagram shows code No. 32.

1990-1998 codes\

To start the self-diagnostic results mode, ground the self-diagnostic (check) terminal located on the Data Link Connector (DLC) . The location of the malfunction is indicated by the warning lamp flashing on the instrument panel. See procedure and code chart below.

• 12 At start of the sequence (Primera). No fault is found (Almera)
• 18 The rotor of the sensor
• 21 Open circuit in front right hand wheel speed sensor.
• 22 Short circuit in front right hand wheel speed sensor.
• 25 Open circuit in front left hand wheel speed sensor.
• 26 Short circuit in front left hand wheel speed sensor.
• 31 Open circuit in rear right hand wheel speed sensor.
• 32 Short circuit in rear right hand wheel speed sensor.
• 35 Open circuit in rear left hand wheel speed sensor.
• 36 Short circuit in rear left hand wheel speed sensor.
• 41 Front right hand outlet of solenoid valve.
• 42 Front right hand inlet of solenoid valve.
• 45 Front left hand outlet of solenoid valve.
• 46 Front left hand inlet of solenoid valve.
• 51 Rear right hand outlet of solenoid valve.
• 52 Rear right hand inlet of solenoid valve.
• 55 Rear left hand outlet of solenoid valve.
• 56 Rear left hand inlet of solenoid valve.
• 57 Low supply voltage.
• 61 The hydraulic pump or relay.
• 63 The system relay.
• 71 The ECU (Electronic control unit)
• 16 Stop Lamp switch circuit

Note: Module may need to be removed to expose LED. However for modules in the boot side finisher, there should be a small hole which can be used to access the LED. Only one code is stored at one time. to get next code, repair and retest

missing 1986-1996 connector image

1. Drive the vehicle faster than 30kph for at least 1 minute.
2. Leave the engine running.
3. Read codes as described as follows

- Only one code is displayed at one time. - The code is a straight count of flashes, 5 flashes represents code 5. - A long pause separates each repetition. - Code Format Diagram shows code No. 5.

missing 1986-1996 format image

1986-1996 codes

• 1 = Left front actuator solenoid circuit.
• 2 = Right front actuator circuit.
• 3 = Rear actuator solenoid circuit.
• 4 = Same as 3.
• 5 = Left front rotor sensor circuit.
• 6 = Right front rotor sensor circuit.
• 7 = Rear rotor sensor circuit.
• 8 = Same as 7.
• 9 = Actuator motor, motor relay circuit.
• 10 = Actuator solenoid valve relay
• 16 = Control Unit

Note: If the Warning Light activates and the L.E.D. is OFF, check the power supply or ground circuit for Control Unit.

Certain driver induced faults, such as not releasing the parking brake fully, excessive wheel spin on low traction surfaces, high speed acceleration or riding the brake pedal may set fault codes and trigger a warning lamp. These induced faults are not system failures but examples of vehicle performance outside the parameters of the control unit.

On a USA 240SX the ABS Controller is in the rear of the car on the left (driver's) side.

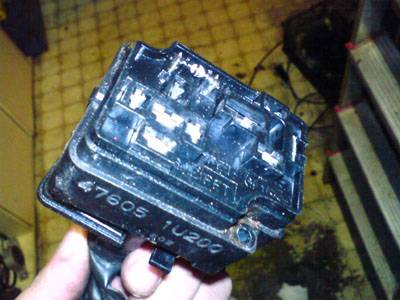

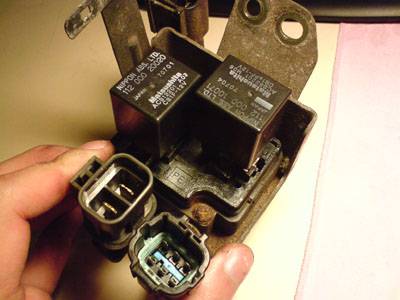

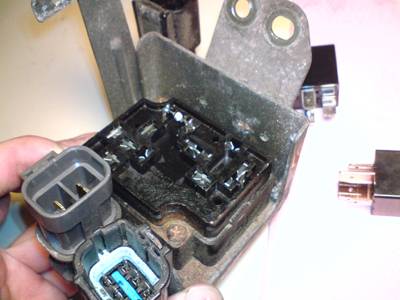

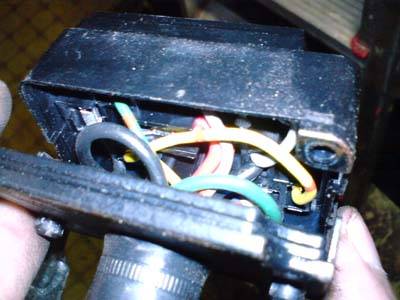

ABS relay box all of a 1993 Micra
